IOgear MiniView GCS1734 KVM Switch Item # 732695

 |

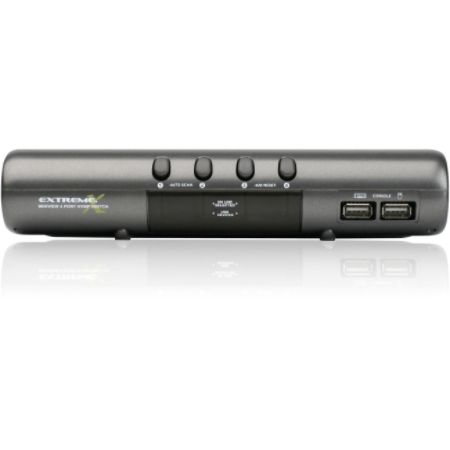

IOgear MiniView GCS1734 KVM Switch
$ 109 .99 / each (*) $109.99
Was: $124.99 / each  (You Save: $15.00)
After Instant Savings
Prices effective through 04/23/2016.
Add a Protection Plan (optional)  Learn More
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    IOGEAR's new MiniView Extreme Multimedia KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Mac, Sun, USB and PS/2. You can save money and space by eliminating the need for multiple monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more. Up to 127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone also offers extra value and convenience for the users.USB and KVM technology together makes cross-platform management easy. A single USB console can control a PC and a Mac, or even a Sun workstation, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the efficiency, expense reduction and convenience of IOGEAR's Miniview Extreme KVMP switch.

    Back To Top

    Product Details

    Item # 732695
    OfficeMax # 20907404
    Manufacturer # C62229
    height 1.9 in
    Additional Information User can conveniently switch USB peripheral devices from one computer to another using Hot Keys; USB peripheral devices and USB consoles can be switched asynchronously from one computer to another using Hot Keys; Fully compliant with USB 1.1 specifications and delivers a 12 Mbps data transmission rate; Complete keyboard and mouse emulation for error free booting; Support special keys on Mac and Sun keyboard; Allows PC keyboards to simulate Mac and Sun special keys through Hotkeys
    Certifications & Standards FCC Part 15 Class B
    width 8.1 in
    Product Line MiniView
    package contents 1 MiniView Extreme Multimedia KVMP Switch; 4 bonded KVM Cables; 1 Power adapter; 1 Firmware upgrade Cable; 1 User manual; 1 Quick Start Guide; 1 Warranty/Registration Card
    depth 3.5 in
    Product Name MiniView GCS1734 KVM Switch
    manufacturer Iogear, Inc
    Graphic Mode VGA; SVGA
    VGA Yes
    weight 1.10 lb
    brand name IOGEAR
    USB Yes
    Number of VGA Ports 1
    Number of Local Users Supported 1
    Number of USB Ports 2
    Number of Computers Supported 4
    Input Voltage 5 V DC
    Maximum Video Resolution 2048 x 1536
    Minimum Scan Interval 5 Second
    Platform Supported PC; Mac; Sun
    model name GCS1734
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Images

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/a4e02e0e-6350-44ea-a91f-8235af6ce979.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/a4e02e0e-6350-44ea-a91f-8235af6ce979.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/a4e02e0e-6350-44ea-a91f-8235af6ce979.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/a4e02e0e-6350-44ea-a91f-8235af6ce979.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/a4e02e0e-6350-44ea-a91f-8235af6ce979.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/7ba7791b-b293-4704-8b6f-9d13643ea14f.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/7ba7791b-b293-4704-8b6f-9d13643ea14f.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/7ba7791b-b293-4704-8b6f-9d13643ea14f.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/7ba7791b-b293-4704-8b6f-9d13643ea14f.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/7ba7791b-b293-4704-8b6f-9d13643ea14f.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/d4f9e56b-419e-4400-a597-11ba7a3141b0.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/d4f9e56b-419e-4400-a597-11ba7a3141b0.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/d4f9e56b-419e-4400-a597-11ba7a3141b0.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/d4f9e56b-419e-4400-a597-11ba7a3141b0.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/d4f9e56b-419e-4400-a597-11ba7a3141b0.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/da490552-a2c4-4a60-aecb-b101e7b312d4.jpg.web.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/da490552-a2c4-4a60-aecb-b101e7b312d4.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/da490552-a2c4-4a60-aecb-b101e7b312d4.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/da490552-a2c4-4a60-aecb-b101e7b312d4.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-45daf55b-c397-4bf8-91a6-02fc5a4da56d/da490552-a2c4-4a60-aecb-b101e7b312d4.jpg.w240.jpg","profile":"W240"}]}]}
      See More:

      Overview

      IOGEAR's new MiniView™ Extreme Multimedia KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Windows ®, Mac, and Sun systems using either USB and PS/2 (additional cables needed for PS/2, IOGEAR Part No. G2L5302P). You can save money and space by eliminating the need for multiple monitors, keyboards, mice, and peripheral devices such as printers, scanners, external hard drives, and more. Up to 127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone also offers extra value and convenience for the users.

      USB and KVM technology together makes cross-platform management easy. A single USB console can control a PC and a Mac, or even a Sun workstation, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the efficiency, expense reduction and convenience of IOGEAR's MiniView™ Extreme KVMP switch.

      Features

      • Control four USB or PS/2 computers from 1 keyboard, monitor, and mouse
      • Share two USB peripheral devices such as printers and scanners, as well as speakers and a microphone
      • High Resolution: Up to 2048 x 1536
      • Multi OS platform support
      • Computer switching via front panel pushbuttons or hotkeys
      • Asynchronous hotkey switching between KVM focus, USB peripheral, and Audio ports
      • Complete keyboard and mouse emulation for error free booting
      • Support special keys on Mac and Sun keyboard
      • LED display for easy status monitoring
      • Easy installation: no software required, hot swappable

       *PS/2 KVM Cables are available and sold separately.
       Warranty:   3-YEAR

      Interactive Demo

      {"tourViews":[{"viewImage":{"assetWrapper":"tour","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/a599fbfc-4947-4ea1-9b11-0cd9aa40bd1e.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/a599fbfc-4947-4ea1-9b11-0cd9aa40bd1e.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/a599fbfc-4947-4ea1-9b11-0cd9aa40bd1e.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/a599fbfc-4947-4ea1-9b11-0cd9aa40bd1e.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/a599fbfc-4947-4ea1-9b11-0cd9aa40bd1e.jpg.w240.jpg","profile":"W240"}]},"hotspots":[{"hotspotX":0.225,"captionFromAttr":"4 USB KVM bonded cables","direction":"left","hotspotY":0.6513157894736842},{"hotspotX":0.4785714285714286,"captionFromAttr":"MiniView™ Extreme Multimedia KVMP switch","direction":"left","hotspotY":0.27631578947368424}]},{"viewImage":{"assetWrapper":"tour","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/d648a5c1-d8d0-4fe1-b2b3-5afdab5c445d.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/d648a5c1-d8d0-4fe1-b2b3-5afdab5c445d.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/d648a5c1-d8d0-4fe1-b2b3-5afdab5c445d.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/d648a5c1-d8d0-4fe1-b2b3-5afdab5c445d.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/d648a5c1-d8d0-4fe1-b2b3-5afdab5c445d.jpg.w240.jpg","profile":"W240"}]},"hotspots":[{"hotspotX":0.4107142857142857,"captionFromAttr":"Port Selection Buttons","direction":"left","description":"4 Ports","hotspotY":0.3684210526315789},{"hotspotX":0.4,"captionFromAttr":"Port LEDs","direction":"left","description":"Upper LEDs: KVM Port Status<br/>Lower LEDs: Selected USB Peripherals","hotspotY":0.5394736842105263},{"hotspotX":0.8107142857142857,"captionFromAttr":"USB Console Ports","direction":"left","description":"Your USB keyboard and USB mouse plug in here.","hotspotY":0.5328947368421053}]},{"viewImage":{"assetWrapper":"tour","runtimeSrc":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/5575745c-12b9-47d9-a750-84cad7fc1222.jpg.web.v1.jpg"},"isAdaCompliant":false,"src":{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/5575745c-12b9-47d9-a750-84cad7fc1222.jpg"},"sources":[{"height":520,"width":960,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/5575745c-12b9-47d9-a750-84cad7fc1222.jpg.w960.jpg","profile":"W960"},{"height":260,"width":480,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/5575745c-12b9-47d9-a750-84cad7fc1222.jpg.w480.jpg","profile":"W480"},{"height":130,"width":240,"src":"/_cp/products/1342806148095/tab-0b398788-e503-4075-8850-9b16bec9dff3/5575745c-12b9-47d9-a750-84cad7fc1222.jpg.w240.jpg","profile":"W240"}]},"hotspots":[{"hotspotX":0.15714285714285714,"captionFromAttr":"Console Audio Jacks","direction":"left","hotspotY":0.40131578947368424},{"hotspotX":0.2571428571428571,"captionFromAttr":"USB Peripheals","direction":"left","description":"Printers, scanners, etc.","hotspotY":0.40131578947368424},{"hotspotX":0.3678571428571429,"captionFromAttr":"Firmware Upgrade Section","direction":"left","hotspotY":0.40131578947368424},{"hotspotX":0.1357142857142857,"captionFromAttr":"Power Jack","direction":"left","hotspotY":0.5460526315789473},{"hotspotX":0.2392857142857143,"captionFromAttr":"VGA Console Port","direction":"left","hotspotY":0.5460526315789473},{"hotspotX":0.55,"captionFromAttr":"Console Audio Ports","direction":"left","description":"4 Ports (Audio/Mic)","hotspotY":0.4144736842105263},{"hotspotX":0.6035714285714285,"captionFromAttr":"CPU Ports","direction":"left","hotspotY":0.5592105263157895}]}],"ipiCompatible":false}
      1. 4 USB KVM bonded cables
      2. MiniView™ Extreme Multimedia KVMP switch
      3. Port Selection Buttons
      4. Port LEDs
      5. USB Console Ports
      6. Console Audio Jacks
      7. USB Peripheals
      8. Firmware Upgrade Section
      9. Power Jack
      10. VGA Console Port
      11. Console Audio Ports
      12. CPU Ports
      Image/Features

      4 USB KVM bonded cables

      MiniView™ Extreme Multimedia KVMP switch

      Port Selection Buttons

      4 Ports

      Port LEDs

      Upper LEDs: KVM Port Status
      Lower LEDs: Selected USB Peripherals

      USB Console Ports

      Your USB keyboard and USB mouse plug in here.

      Console Audio Jacks

      USB Peripheals

      Printers, scanners, etc.

      Firmware Upgrade Section

      Power Jack

      VGA Console Port

      Console Audio Ports

      4 Ports (Audio/Mic)

      CPU Ports
      Product Tour
      Click to Start

      How it Works

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":200,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/d40f7a37-97b9-4d24-babc-103284c63de1.jpg.web.jpg"},"caption":"How it Works","isAdaCompliant":true,"src":{"height":200,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/d40f7a37-97b9-4d24-babc-103284c63de1.jpg"},"sources":[{"height":200,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/d40f7a37-97b9-4d24-babc-103284c63de1.jpg.w960.jpg","profile":"W960"},{"height":200,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/d40f7a37-97b9-4d24-babc-103284c63de1.jpg.w480.jpg","profile":"W480"},{"height":109,"width":240,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/d40f7a37-97b9-4d24-babc-103284c63de1.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":300,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/6dd953c7-1095-44a0-868e-acd796447c53.jpg.web.jpg"},"caption":"How it Works","isAdaCompliant":true,"src":{"height":300,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/6dd953c7-1095-44a0-868e-acd796447c53.jpg"},"sources":[{"height":300,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/6dd953c7-1095-44a0-868e-acd796447c53.jpg.w960.jpg","profile":"W960"},{"height":300,"width":440,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/6dd953c7-1095-44a0-868e-acd796447c53.jpg.w480.jpg","profile":"W480"},{"height":163,"width":240,"src":"/_cp/products/1342806148095/tab-74d0d195-570e-495a-901d-08f1d9c48566/6dd953c7-1095-44a0-868e-acd796447c53.jpg.w240.jpg","profile":"W240"}]}]}

      In the Box

      • 1 MiniView™ Extreme Multimedia KVMP switch
      • 4 USB KVM bonded cables
      • 1 Quick start guide
      • 1 User manual
      • 1 Warranty card
      • 1 Power adapter
      • 1 Firmware upgrade cable

      Requirements

      Console
      • 1 VGA Display
      • 1 set of USB Keyboard and Mouse

      Computers
      • 1 VGA Port
      • 1 USB Port1
      • Audio / Mic Port

      Operating Systems
      • Windows XP, Windows Vista
      • Windows 72
      • Windows 8.x
      • Mac OS X 9 to 10.x
      • Sun Solaris
      • Linux



      1. 1 PS/2 KVM Cables are available and sold separately.
      2. 2 Does not support display emulation for Windows 7 (EDID).
